1. 前端说明
前端追加了vue-socket.io的依赖
更新package.json及package-lock.json后，需要补充库
2. 后端说明
服务端需要安装的python包
- suse python 3.6.12
Flask_SocketIO-4.3.1-py2.py3-none-any.whl
python_socketio-4.6.0-py2.py3-none-any.whl
python_engineio-3.13.2-py2.py3-none-any.whl
cffi-1.15.1-cp36-cp36m-manylinux_2_5_x86_64.manylinux1_x86_64.whl
zope.event-4.6-py2.py3-none-any.whl
zope.interface-5.5.2-cp36-cp36m-manylinux_2_5_x86_64.manylinux1_x86_64.manylinux_2_12_x86_64.manylinux2010_x86_64.whl
greenlet-1.1.3-cp36-cp36m-manylinux1_x86_64.whl
gevent_websocket-0.10.1-py3-none-any.whl
gevent-20.12.1.tar.gz
- windows python 3.8.10
Flask_SocketIO-4.3.1-py2.py3-none-any.whl
python_socketio-4.6.0-py2.py3-none-any.whl
python_engineio-3.13.2-py2.py3-none-any.whl
zope.event-4.6-py2.py3-none-any.whl
zope.interface-6.0-cp38-cp38-win_amd64.whl
cffi-1.15.1-cp38-cp38-win_amd64.whl
greenlet-2.0.2-cp38-cp38-win_amd64.whl
gevent_websocket-0.10.1-py3-none-any.whl
其中gevent-20.12.1.tar.gz 需要最后手动解压然后 执行setup.py
3. whl依赖包下载
https://pypi.org/
如有网环境，可以采用以下安装方式：

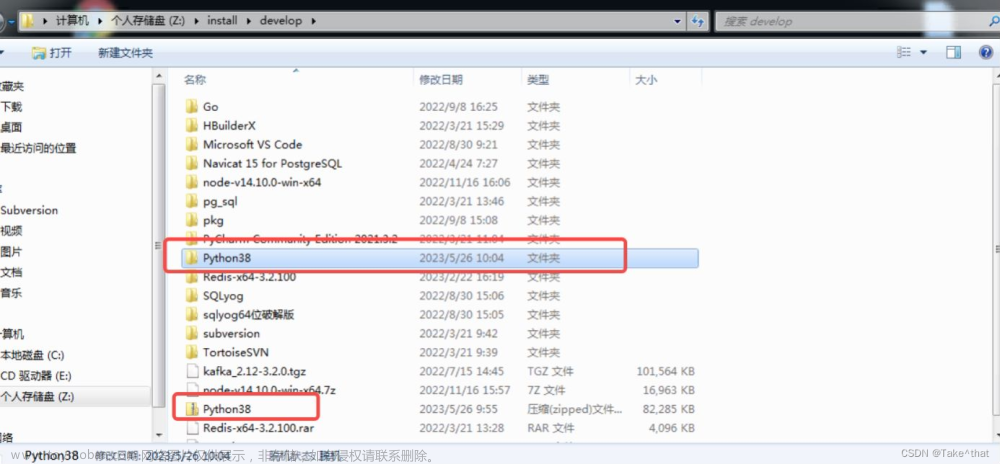

先在有网环境下,PyCharm工具里面下载，如下图：
然后在无网环境下直接使用现成的即可：
备注：有网环境下也可采用下面的方式按照依赖
# 后端依赖安装
pip install flask-socketio
pip install flask-cors
# 前端依赖安装
npm install socket.io-client --also=dev
npm install vue-socket.io --also=dev
npm install echarts --also=dev
后端依赖安装
pip install flask-socketio
pip install flask-cors
前端依赖安装
npm install socket.io-client --also=dev
npm install vue-socket.io --also=dev
npm install echarts --also=dev
4. 报错问题
Linux 手动安装python setuptools时报错缺少zlib模块解决办法
python操作kafka报错：return ‘＜SimpleProducer batch=%s＞‘ % self.async
python ERROR: Could not find a version that satisfies the requirement XXX解决方法
【frida】lxhToolHTTPDecrypt安装使用问题
Python ThreadPoolExecutor线程池：
Python ThreadPoolExecutor线程池
5. 实现过程
前端代码
vue.config.js (只列出相关代码)
'use strict'
const path = require('path')
const defaultSettings = require('./src/settings.js')
function resolve(dir) {
return path.join(__dirname, dir)
}
const name = defaultSettings.title || 'vue Admin Template' // page title
// All configuration item explanations can be find in https://cli.vuejs.org/config/
module.exports = {
/**
* You will need to set publicPath if you plan to deploy your site under a sub path,
* for example GitHub Pages. If you plan to deploy your site to https://foo.github.io/bar/,
* then publicPath should be set to "/bar/".
* In most cases please use '/' !!!
* Detail: https://cli.vuejs.org/config/#publicpath
*/
publicPath: '/',
outputDir: 'dist',
assetsDir: 'static',
lintOnSave: process.env.NODE_ENV === 'development',
productionSourceMap: false,
devServer: {
host: '0.0.0.0',
port: port,
overlay: {
warnings: false,
errors: true
},
before: require('./mock/mock-server.js'),
proxy: {
// 本地使用代理 线上使用nginx
'/dev-api/api': {
target: `http://127.0.0.1:5100`,
changeOrigin: true,
onProxyReq:function (proxyReq, req, res, options) {
if (req.body) {
let bodyData = JSON.stringify(req.body);
// incase if content-type is application/x-www-form-urlencoded -> we need to change to application/json
proxyReq.setHeader('Content-Type','application/json');
proxyReq.setHeader('Content-Length', Buffer.byteLength(bodyData));
// stream the content
proxyReq.write(bodyData);
}
},
pathRewrite: {
'^/dev-api/api': '/api'
}
},
'/dev-api/upload/api': {
target: `http://127.0.0.1:5100`,
changeOrigin: true,
onProxyReq:function (proxyReq, req, res, options) {
if (req.body) {
let bodyData = JSON.stringify(req.body);
proxyReq.write(bodyData);
}
},
pathRewrite: {
'^/dev-api/upload/api': '/api'
}
},
'/socket.io': {
target: `http://127.0.0.1:5100`,
ws: true,
changeOrigin: true
},
}
},
}
页面发起请求的按钮示例代码：
<!-- 从架构平台同步应用系统数据-->
<el-button type="primary" icon="el-icon-refresh" @click="updateAppList()">从架构平台同步</el-button>
import { getApplicationList, putApplicationItem, UpdateApplicationList, getApplicationDetail } from '@/api/organization'
import VueSocketIO from 'vue-socket.io'
后端代码
flask main.py
import os
import sys
import json
import time
# from crypt import methods
import queue
import xlrd
import threading
from concurrent.futures import ThreadPoolExecutor
from flask import Flask, Response, make_response, send_file, send_from_directory
from flask import request
from flask_socketio import SocketIO, send, emit
# sys.path.append("/app/app")
from service.service_websocket import update_business_list_webscoket, import_duty_info_websocket
app = Flask(__name__, instance_relative_config=True)
app.config['SECRET_KEY'] = 'secret!'
socketio = SocketIO(app, cors_allowed_origins="*")
executor = ThreadPoolExecutor(max_workers=2)
Swagger(app)
def update_business_list_thread(msg_queue):
update_business_list_webscoket(msg_queue)
@socketio.on('connect', namespace='/update_application_list')
def connect_update_application_list():
print("=============================update_application_list connect..")
token = request.headers.get('X-Token') # 获取token
condition = {'update_by': ""}
if token and token != '':
user_info = get_user_data(token)
user_id = user_info['id']
condition['update_by'] = user_id
print(condition)
timeout = 120
msg_queue = queue.Queue()
# 在上面最开始程序中，executor = ThreadPoolExecutor(max_workers=2)
# 表示创建一个线程池，而它的管理者就是实例对象executor，executor有一个submit() 方法，
# 它会将线程提交给线程池，与原本直接使用Thread类的多线程编程不同，线程池中的线程提交后，若线程数量不超过max_workers，就会启动新提交的线程，
# 而使用Thread类需要调用start() 方法去启动
# 在执行update_business_list_webscoket(msg_queue)任务期间，实时的向队列msg_queue放入当前的执行状态信息
thread = executor.submit(update_business_list_thread, msg_queue)
# threading.Timer 是 threading.Thread 的一个派生类，是在指定的时间 n 秒后执行一个函数功能。它会集成 threading.Thread 的很多属性和方法。
threading.Timer(timeout, thread_timeout, args=(thread, msg_queue, ))
# 使用 flask_socketio 默认提供的方法 start_background_task 伪同步的执行一个后台任务，该任务需要持续存在
# 由于 app 上下文在伪同步中被保持，所以可以正确主动执行发送 emit / send
socketio.start_background_task(target=handle_queue, namespace='update_application_list', msg_queue=msg_queue)
def thread_timeout(thread, msg_queue):
try:
if not thread.done():
thread.cancel()
msg_queue.put({'message': '应用信息同步超时', 'status': 'error'})
except Exception as r:
print('未知错误 %s' % (r))
# 同时在执行的这个后台任务，一旦发现msg_queue里面有更新的状态信息，就会立即将响应返回给前端予以展示
def handle_queue(namespace, msg_queue):
while True:
socketio.sleep(1)
while msg_queue.empty() == False:
msg = msg_queue.get()
socketio.emit(namespace, msg, namespace='/' + namespace)
if msg['status'] == 'finished':
print(namespace + ' is finished.')
return
@socketio.on('connect')
def connect():
print("=============================connect..")
# socketio.emit("response", {'percentage': 18})
@socketio.on('disconnect')
def disconnect():
print("===========================disconnect...")
@socketio.on_error() # Handles the default namespace
def error_handler(e):
print('=====================received error: ' + str(e))
pass
@socketio.on_error_default # handles all namespaces without an explicit error handler
def default_error_handler(e):
print('=====================received error: ' + str(e))
pass
if __name__ == '__main__':
app.config.from_mapping(
SECRET_KEY='dev',
# DATABASE=os.path.join(app.instance_path, 'flaskr.sqlite'),
)
# if test_config is None:
# # load the instance config, if it exists, when not testing
# app.config.from_pyfile('config.py', silent=True)
# else:
# # load the test config if passed in
# app.config.from_mapping(test_config)
# ensure the instance folder exists
try:
os.makedirs(app.instance_path)
except OSError:
pass
socketio.run(app, port=port_flask, host="0.0.0.0")
6. 效果演示：
先简单构造一个测试数据：
下面开始发起请求：
后端代码Print打印出来日志如下：
前端请求栏详细信息如下：
可以看到下面的时间间隔为15秒左右：
